Ion Beam Sputtered Coatings

Precision Optics Manufacturing: Ion Beam Sputtered Coatings

Ion Beam
Sputtered Coatings

Reflectivities >99.99%

Coatings That Are Less Affected by Environmental Factors, Including Temperature and Humidity

Surface Roughness No Longer Limited by Coating

Coatings Covering Wavelengths Between 266-1600nm

Group Delay Dispersion (GDD) Control for Ultrafast Coatings

Edmund Optics^® designs and manufactures optical coatings deposited using ion beam sputtering (IBS), a highly-repeatable coating technology ideal for high-reflectivity mirrors, ultrafast mirrors, and filters with sharp transitions.

Measuring High Reflectivity IBS Coatings
Using Cavity Ring-Down (CRD) Loss Meters

State-of-the-Art Metrology for Highly-Reflective Optical Components
Highly-Sensitive Measurement of Total Loss in the Parts per Million
Signal Decay Rate Measured in Cavity Consisting of Test Optic and Reference Mirror

Learn More

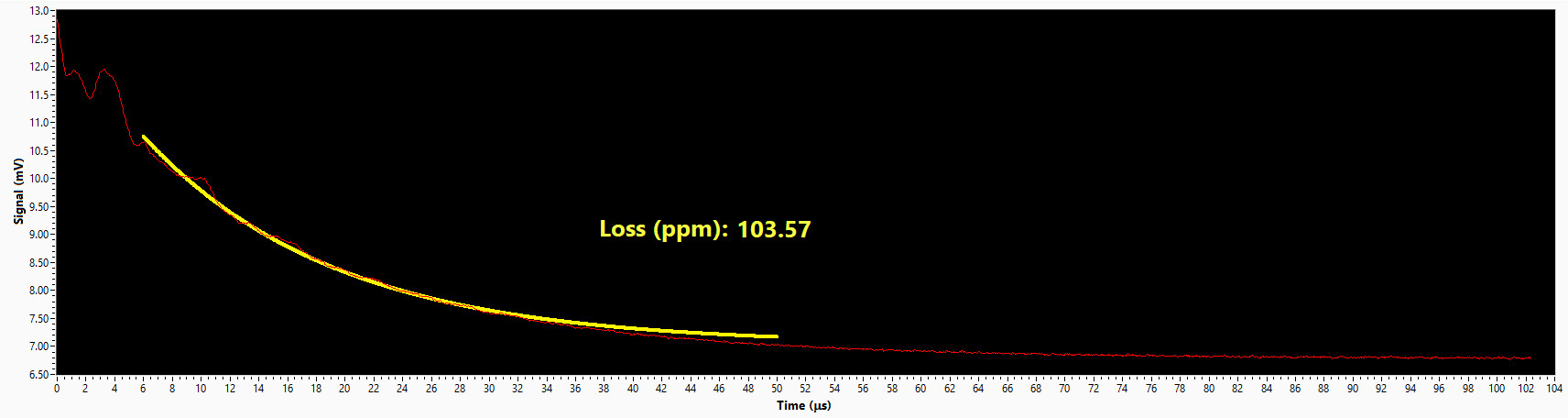

CRD loss meters produce a highly-sensitive loss measurement of signal decay rate, quantifying a component’s transmission, absorption, and scatter

Figure 1: CRD loss meters produce a highly-sensitive loss measurement of signal decay rate, quantifying a component’s transmission, absorption, and scatter.

Loss measurements made using CRD are much more accurate for highly-reflective optics than direct transmission or reflection measurements made using a spectrophotometer

Figure 2: Loss measurements made using CRD are much more accurate for highly-reflective optics than direct transmission or reflection measurements made using a spectrophotometer.

High Laser Induced Damage Threshold (LIDT)

IBS coatings are ideal for laser optics applications due to their high laser induced damage threshold.

Wavelength	Typical LIDT
355nm	10 J/cm² @ 20ns, 10Hz
532nm	25 J/cm² @ 20ns, 10Hz
1064nm	30 J/cm² @ 20ns, 10Hz

Table 1: Due to continuous process improvement, these typical LIDT values will continue to improve over time.

Ultrafast IBS Coatings

Coating Layers Designed for Either Near-Zero or High Negative Group Delay Dispersion (GDD)
Minimize or Compensate for the High Dispersion Prevalent in Ultrafast Laser Systems
Short Pulse Durations of Ultrafast Lasers Beneficial for a Wide Range of Applications
White Light Interferometry Used to Accurately Measure GDD

Superpolished Substrates for IBS Optics

RMS Surface Roughness <1Å for Minimized Scatter
Diameters up to 50mm on Fused Silica
Complement IBS Coatings for Creating Extremely Low Loss Optics

Learn More

Custom Designed &
Manufactured IBS Optics

Standard IBS Components Available for Immediate Shipping

Shop Edmund Optics^® Marketplace for the world’s largest selection of off-the-shelf optical components with same-day shipping.
