Name: 100mm C Series Fixed Focal Length Lens
Brand: TECHSPEC
SKU: 86-410
Price: ₹28,188

100mm C Series Fixed Focal Length Lens

100mm Focal Length, #86-410

Stock #86-410 10 to 12 days

- +

₹28,188

Qty 1+
₹28,188

Volume Pricing
Request Quote

+ Add to Saved List
Create an account or log in to access saved list

Compare

Get Product Downloads

Iris Option:

Variable

Length (mm):

92.10

Horizontal Field of View, 1/2" Sensor:

3.6°

Horizontal Field of View, 2/3" Sensor:

5.0°

Filter Thread:

M46 x 0.75 (Female)

Maximum Diameter (mm):

Outer Diameter (mm):

52.00

Weight (g):

257

Horizontal Field of View, 1/3" Sensor:

2.7°

Maximum Rear Protrusion (mm):

Horizontal Field of View, 1" Sensor:

7.2°

Maximum Image Circle (mm):

21.60

Numerical Aperture NA, Object Side:

0.0228

Horizontal Field of View @ Max Sensor Format:

9.7°

Horizontal Field of View, 4/3" Sensor:

9.8°

Horizontal Field of View, 1.1" Sensor:

8.0°

Number of Elements (Groups):

7 (6)

Horizontal Field of View, 1/1.8" Sensor:

4.1°

Horizontal Field of View, 1/2.5" Sensor:

3.3°

Type:

Fixed Focal Length Lens

Focal Length FL (mm):

100.00

Primary Magnification PMAG:

0.16

Maximum Sensor Format:

4/3"

Working Distance (mm):

750 - ∞

Mount:

C-Mount

Aperture (f/#):

f/2.8 - f/22

Coating:

425 - 675nm BBAR

Coating Specification:

425 - 675nm BBAR

Entrance Pupil Position (mm):

31.42

Horizontal Field of View, 1/4" Sensor:

2.0°

Object Space Principal Plane (mm):

-25.65

Image Space Principal Plane (mm):

-86.83

Field of View at Max Sensor Format:

Horizontal: 9.8°
Vertical: 7.4°
Diagonal: 12.1°

Maximum Distortion (%):

1.6

Exit Pupil Position (mm):

-50.5

Lens Wavelength Range:

VIS

Imaging Lens Type:

Compact Lens

Storage Temperature (°C):

-20 to +60 For questions regarding operating temperature please contact our support team

Regulatory Compliance

RoHS 2015:

Compliant

REACH 201:

Compliant

Certificate of Conformance:

View

Product Family Description

Up to 2/3", C-Mount Lens
Up to 7.5 MegaPixels, 2.8µm Pixel Size Sensors
Compact (C), FA Lens for Machine Vision
3.5mm to 100mm Focal Length

TECHSPEC® C Series Fixed Focal Length Lenses are designed for use in machine vision applications with the working distance and resolution requirements of factory automation and inspection in mind. TECHSPEC® C Series Fixed Focal Length Lenses feature large maximum apertures, allowing these high performance lenses to be used in even the most restrictive lighting conditions. Each lens has a broadband anti-reflection coating, locking iris and focus adjustment with recessed set screws, and a ruggedized, robust housing for space-restrictive applications. C Series lenses are manufactured to high tolerances, which result in high levels of imaging performance with low lens-to-lens variation. Through combining optical performance, industrial features, and compact package sizes, our TECHSPEC® C Series Fixed Focal Length Lenses are ideal for use in factory automation and inspection.

Edmund Optics has created a family of high performance optical designs (the C Series family) and developed 6 customized optomechanical solutions targeted for specific applications. These lens sub-families utilize the same optics as the C Series lenses providing the same optical performance in a variety of optomechanical solutions to meet your application requirements:

C Series: Features locking cam focus and iris adjustment and is the most adjustable version of these optical designs; they are the typical high quality machine vision lenses. Also available with a VIS-NIR Broadband Anti-Reflection (BBAR) or SWIR Coating
Ci Series: Simplified mechanics featuring fixed apertures with compact housing. Industrial Ruggedization for reduced size, cost, and locked focus.
Cr Series: All optics glued in place and a locking C-clamp focus ring. Stabilized Ruggedization for reduced pixel shift and improved focus stability.
Cx Series: Modular, flexible mechanics allows lenses to be taken apart for easy integration of accessories such as liquid lenses, apertures, and more.
Liquid Lens Cx Series: Designed with an integrated liquid lens for quick autofocus.
Cw Series: Waterproof, designed to meet IEC Ingress Protection Code IPX7 and IPX9K.

#86-410, 100mm C Series Fixed Focal Length Lens, Distortion Plot

#86-410, 100mm C Series Fixed Focal Length Lens, Relative Illumination Plot

#86-410, 100mm C Series Fixed Focal Length Lens, Working Distance versus Field of View Plot

#86-410, 100mm C Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 750mm Working Distance, f2.8

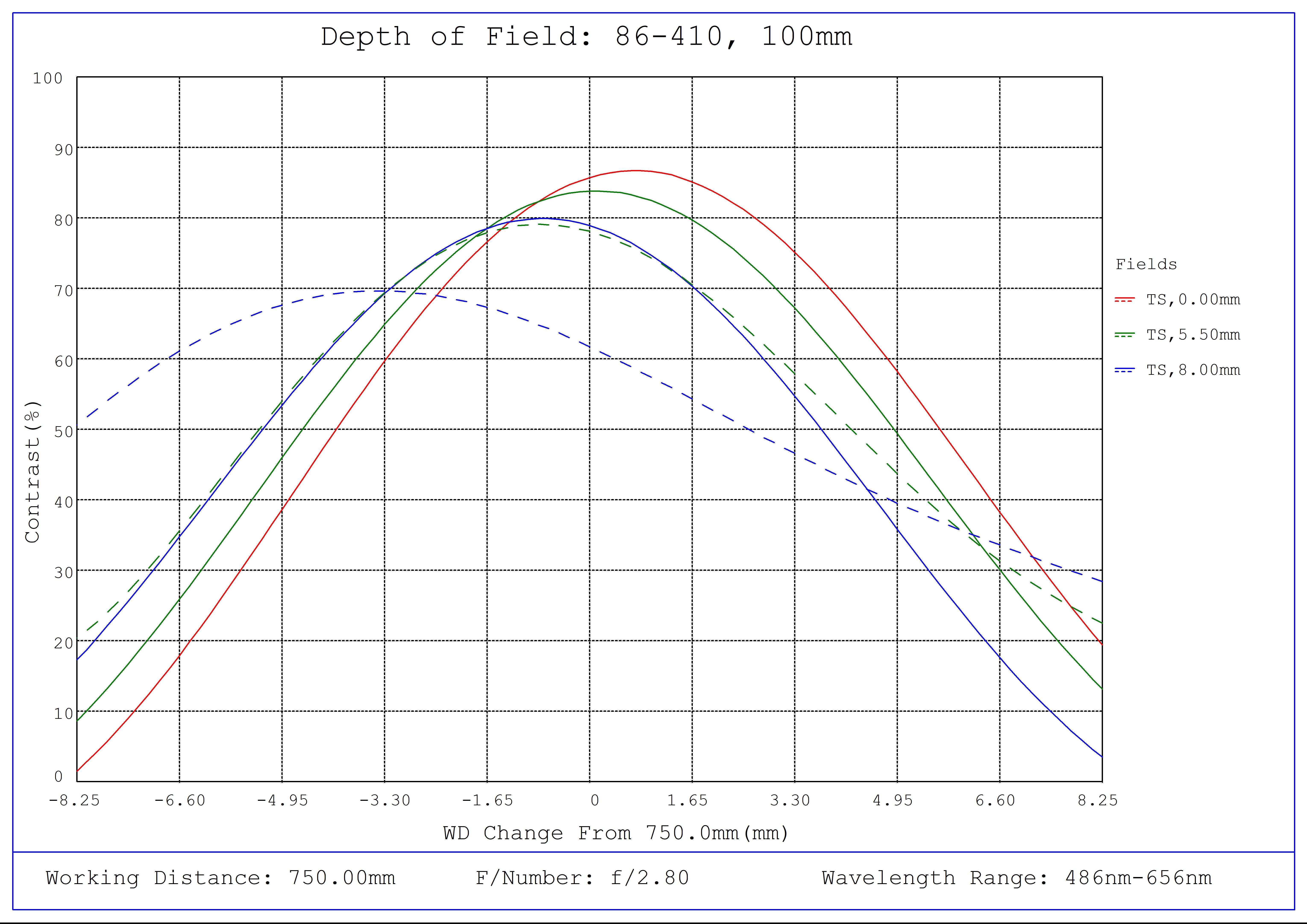

#86-410, 100mm C Series Fixed Focal Length Lens, Depth of Field Plot, 750mm Working Distance, f2.8

#86-410, 100mm C Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 750mm Working Distance, f4

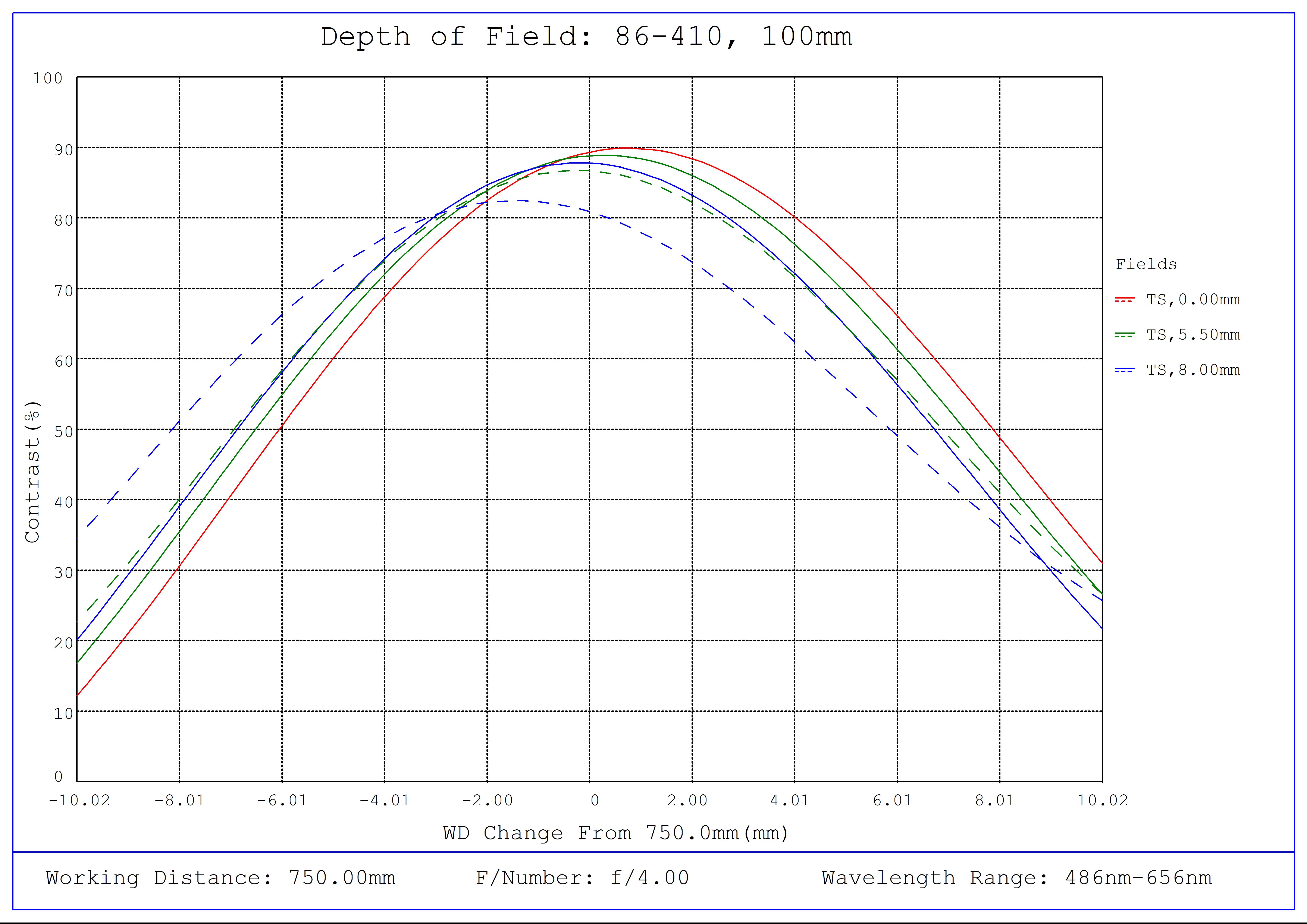

#86-410, 100mm C Series Fixed Focal Length Lens, Depth of Field Plot, 750mm Working Distance, f4

#86-410, 100mm C Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 1000mm Working Distance, f2.8

#86-410, 100mm C Series Fixed Focal Length Lens, Depth of Field Plot, 1000mm Working Distance, f2.8

#86-410, 100mm C Series Fixed Focal Length Lens, Modulated Transfer Function (MTF) Plot, 1000mm Working Distance, f4

#86-410, 100mm C Series Fixed Focal Length Lens, Depth of Field Plot, 1000mm Working Distance, f4

Technical Information


Focal Length	A	B	C	D
3.5mm	50.0mm	39.3mm	32.0mm	2.72mm
4.5mm	40.0mm	37.5mm	32.0mm	2.78mm
6.0mm	36.0mm	48.9mm	35.8mm	1.4mm
8.5mm	32.0mm	34.5mm	32.0mm	0.0mm
12mm	32.0mm	27.9mm	32.0mm	0.5mm
16mm	33.0mm	40.5mm	33.0mm	1.0mm
25mm	31.0mm	30.5mm	31.0mm	1.3mm
35mm	33.0mm	41.0mm	33.0mm	0.0mm
50mm	35.8mm	53.7mm	35.8mm	2.85mm
100mm	52.0mm	93.5mm	41.0mm	7.0mm
