Manufacturer of
Precision Optics

Custom optical solutions as well as built-to-print.
Edmund Optics® produces about 2,500,000
customized optical components per year.

Get Started
Imaging Optics Products



Your Partner for OEM Solutions

Edmund Optics® manufactures and supplies customers around the globe with millions of precision optical components and optical assemblies. Our manufacturing capabilities comprise of expertise and resources necessary to manufacture optical products based on your project’s specific requirements. Our dedicated and skilled team members will ensure that you receive the optimal solution for your application – from design support, to prototyping services, optical consulting all the way to volume production of your customized product to state-of-the-art metrology and quality assurance

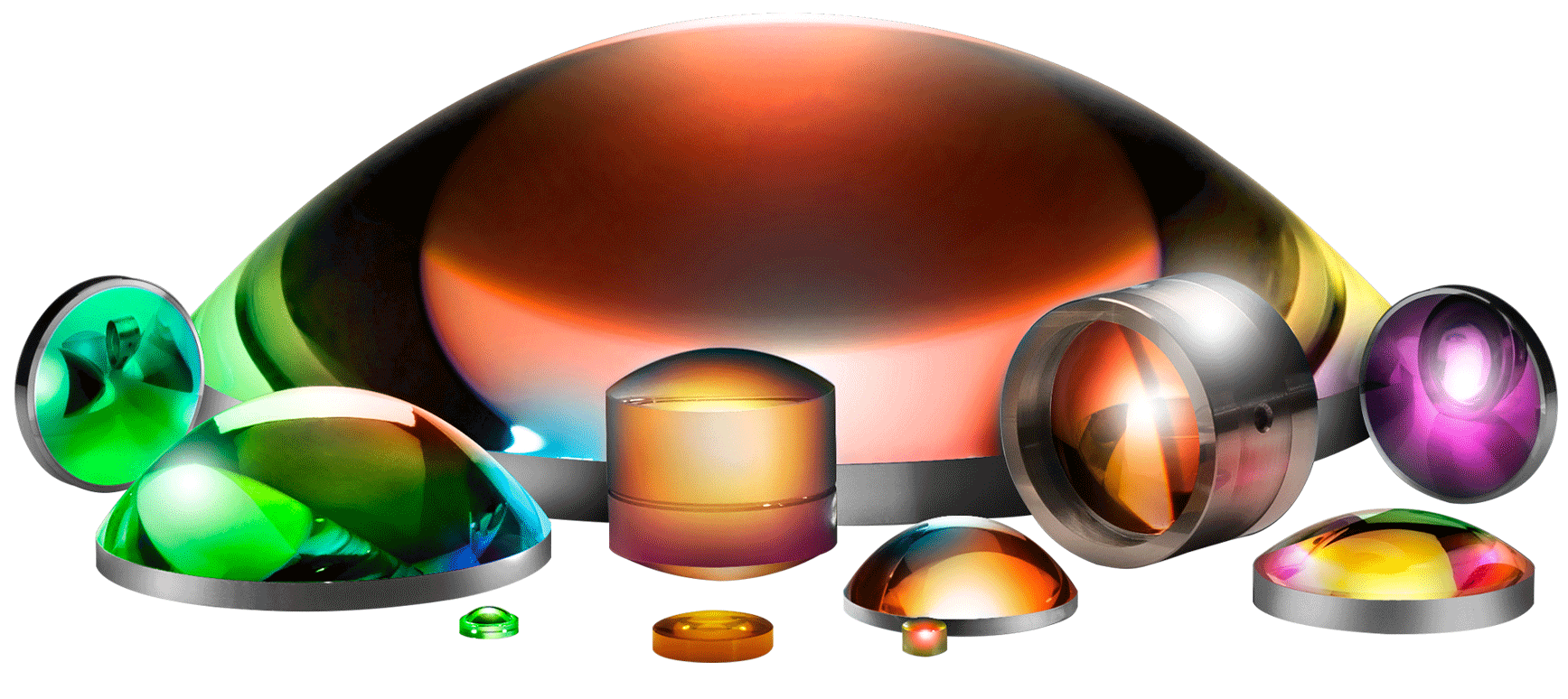

Custom Components

Edmund Optics® takes customers from prototype to volume production specialized in creating cost-effective solutions that meet their specifications, timelines, and budgets.

  • Lenses, Mirrors, Prisms, Beamsplitters, Filters, and More
  • Build-to-Print Manufacturing
  • Competitive Volume Pricing
  • Global Manufacturing Facilities

Manufacturing Techniques

Edmund Optics® continuously expands its equipment and toolset to optimize the fulfillment of our customer needs.

  • E-Beam Deposition
  • Ion-Assisted Deposition
  • Advanced Plasma Source (APS)
  • Ion Beam Sputtering (IBS)
  • Thermal Evaporation
  • High-Precision Optical Monitoring
  • Hard Coatings for Stringent Environments and Durability
  • Automated Ultrasonic Cleaning
  • Grinding
  • Polishing
  • Diamond Turning



Where We Are

We have locations in 12 countries, 8 factories, 6 global warehouses, 4 world class design centers as well as 7 labs. With our global locations and local presence, we provide highly experienced application support by working directly with customers to find solutions for their unique parts and projects. Contact one of our in-region specialists, who have a wide range of customer and application experience to solve your unique application needs. If you do not find what you need, leverage our expertise for your next project – our team is passionate, dedicated, and committed to helping solve your challenges and design a customized solution. At Edmund Optics®,  we do what is best for the customer.

laser optics map img-up2 active
Edmund Optics SINGAPORE

Singapore

77,000 sq. ft (7,150 m2) of manufacturing space. Highly vertically-integrated facility for volume production of components and mounted optics.

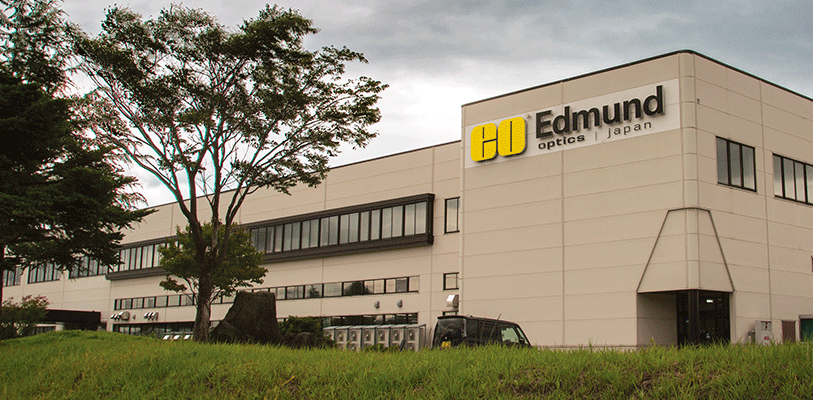

Edmund Optics JAPAN

Akita, Japan

80,000 sq. ft (7,430 m2) of manufacturing space. High-precision spherical lenses, prisms, and other coated optics with over 50 years of experience.

Corporate Headquarters

New Jersey, USA

120,000 sq. ft (11,150 m2); 20,000 sq. ft (1,860 m2) of dedicated manufacturing space. High-precision fabrication, coating, assembly, and testing cells.

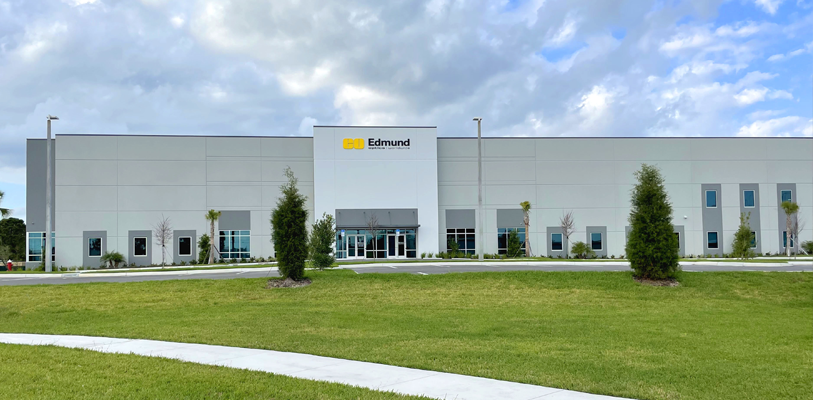

Laser Optics Centers

Florida, USA

34,000 sq. ft (3,159 m2)
dedicated to manufacturing high laser damage coatings, laser crystals, and other high-precision optics.

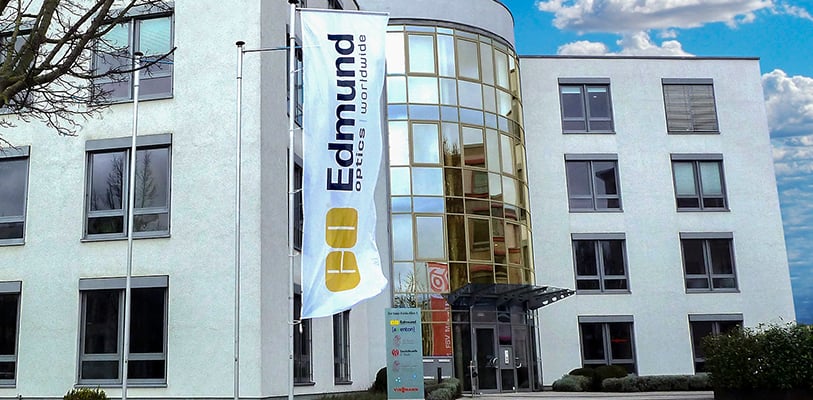

Edmund Optics Germany

Germany

7,060 sq. ft (660 m2) facility. European manufacturing base for polarizers and colored filter glass and home for European Optical Design service.

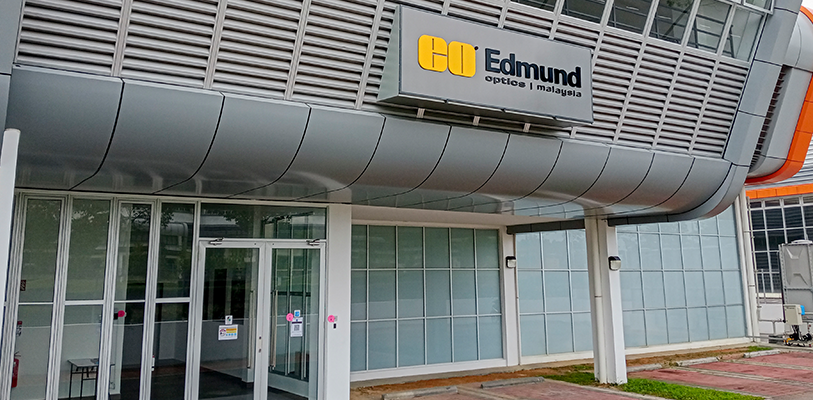

Edmund Optics Malaysia

Malaysia

16,140 sq. ft (1,500 m2) of manufacturing space. Supports Singapore facility in volume production of spherical lenses and prisms.

Edmund Optics China

China

16,140 sq. ft (1,500 m2) of manufacturing space. On-site design, assembly, and testing of high volume optomechanical and imaging assemblies.

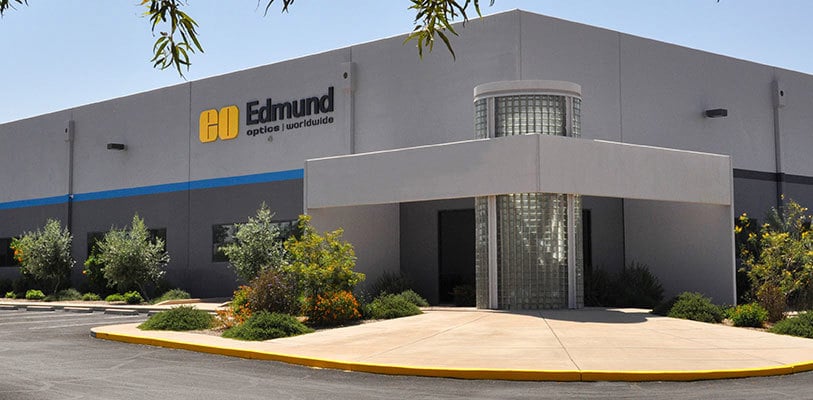

Design & Manufacturing Center

Arizona, USA

21,225 sq. ft (1,972 m2) facility for advanced, high-volume opto-electronic assembly, imaging optics design, and optical assembly metrology.




Optical Coatings

Optical coatings are a critical portion of the finished optical components or assembly. Accurate optical coating design and production can mean the difference between the component failing in the field or lasting for the intended lifetime of the project. Edmund Optics has extensive coating capabilities, and expertise in producing coatings for life science applications and medical devices, harsh environment imaging assemblies, and applications throughout the ultraviolet (UV), visible (VIS), and infrared (IR) spectral regions. All optics are meticulously cleaned, coated, and inspected in a clean room environment, and subjected to the environmental, thermal, and durability requirements specified by our customers.


  • Internal volume coating capabilities from 248nm to > 40μm
  • Custom coating design from UV to LWIR spectral ranges
  • Well-established partners covering selective UV ranges from 4.1nm to 157nm
  • Competitive volume pricing
  • Anti-reflective, highly-reflective, filter, polarizing, beamsplitter, and metallic designs
  • High laser damage threshold (LDT) and ultrafast laser coatings
Learn More



State-of-the-Art Metrology

Metrology is an essential step when delivering reliable customized products. If you can measure it, you can make it. We at Edmund Optics combine a wide range of metrology options and tools which can be used specifically for your needs, individually or in combination – your requirements define our process.

Quality control and metrology

  • Through preventative and corrective action procedures
  • ISO 9001 certified and ISO 10110 compliant with MIL-SPEC quality programs

Every step of the way, Edmund Optics is commited to ensuring product and procedural quality and has a proven track record of tailored testing for optical assemblies customized to project requirements.

Metrology

  • Spectrophotometers - Agilent, Hitachi, PerkinElmer LAMBDA, PerkinElmer FTIR, Varian, Essent Optics, and Photo RT
  • In-house laser damage threshold testing (LDT)
  • UltraFast innovations white light interferometer for group delay dispersion testing
  • Olympus MX51 DIC Microscopes
  • Filmetrics F20 Thin Film Analyzer
  • ZYGO NewView™ 9000 for surface roughness metrology
  • Cavity ring-down spectroscopy for high reflectivities
  • Environmental test chambers: temperature, humidity, salt spray
  • Automated abrasion tester for durability
  • Atomic force microscopy (AFM)
  • Photothermal common-path interferometry





Custom Assemblies

The expert team of Edmund Optics optical and optomechanical designers, project managers, and manufacturing engineers create a wide variety of different types of optomechanical assemblies.

Metrology Capabilities
  • Imaging Lenses, Laser Beam Expanders, Microscope Objectives, and More
  • Environmental Ruggedization for Shock and Vibration, Moisture, and Athermalization
  • Global Assembly Facilities




Capabilities

Edmund Optics® engineers can design and manufacture fully-custom components, build-to-print following customer-supplied designs, and quickly modify any of our thousands of off-the-shelf optics sold in Edmund Optics® Marketplace.

Aspheres
Beamsplitters
Optical Prisms
Spherical Lenses
Polarizers
Optical Filters
Windows


Engineering Services

Our in-house expertise and metrology to support your custom manufacturing spreads from Design, Consulting, via Prototyping to Testing.

  • Design and Consulting
  • Prototyping
  • Testing

Design and Consulting

Application Expertise

Guidance for optimizing both system performance and cost

Global Footprint

In-region engineers to support you through design and production

Wide Range of Design Tools

Zemax, Code V®, FRED™, COMSOL®, Abaqus FEA, Solidworks,
Matlab®, and more

Prototyping

Quickly Modify In-Stock Optics

Modify any of our 34,000 off-the-shelf optics in just 2-3 weeks

Fast Custom Components

Lead times as short as 3 weeks for custom glass optics depending on geometry and component type

Skip the Line for Raw Materials

Over 65 common glass types kept on hand at manufacturing sites

Custom Optical Assemblies

Quickly modify mechanics, magnification, or wavelength of off-the-shelf assemblies

Testing

In-Process Metrology

State-of-the-art optical metrology including interferometers, spectrophotometers, and laser damage testing

Imaging Assembly Metrology

Testing for MTF and resolution, stray light, telecentricity, wavefront distortion, mechanical tolerances, and more

Laser Optics Assembly Metrology

Laser damage threshold testing, cavity ring-down spectroscopy, interferometry, wavefront sensors, and much more

Environmental Testing

Testing for temperature, humidity, immersion, shock, and vibration
