1951 USAF Resolution Calculator

View All Technical Tools

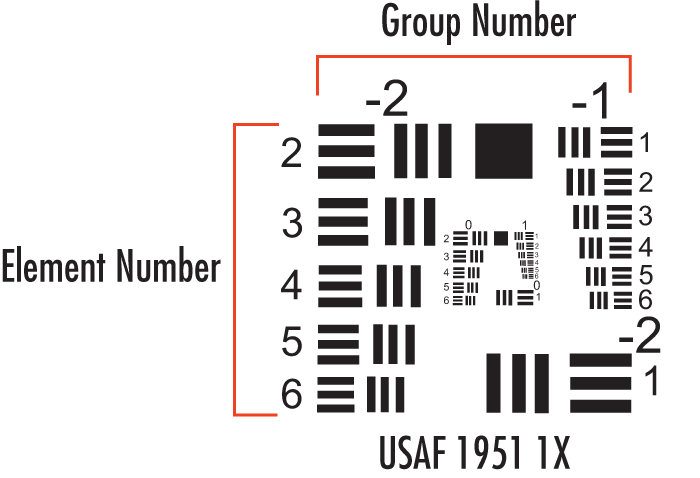

Group Number:

Element Number:

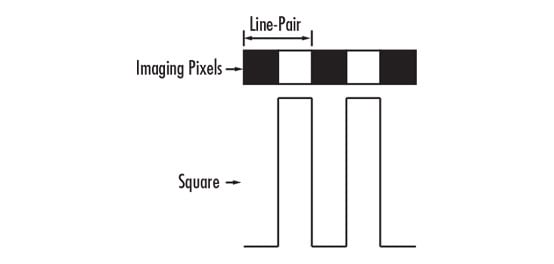

Resolution (lp/mm): --

Focal Length Calculator
$$ \text{Resolution} = 2^{\left( \text{Group Number} + \frac{ \text{Element Number} - 1 }{6} \right)} $$

Description

Determine limiting resolution of an optical or imaging application setup. Calculator uses relationship between group number and element number to determine resolution in terms of line pairs per millimeter.
